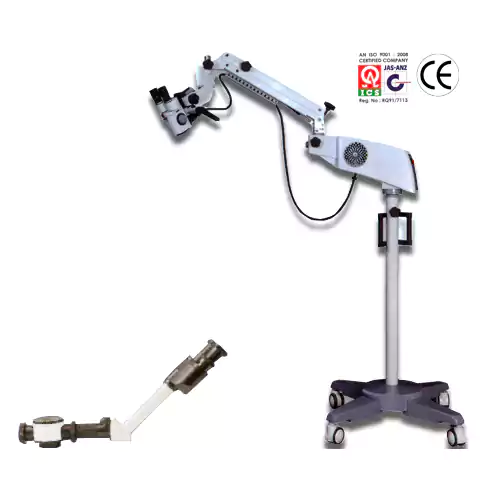

Dental Microscopes, Colposcope, Manufacturer, India |

We are Manufacturer, Supplier, Exporter of Dental Microscopes and our setup is situated in Sangli, Maharashtra, India.

Precisely assembled optics with new generation dual beam technology illumination system offers for enhance apparent depth.
Unique dual beam technology of illumination reduces the shadows & offers great comfort during time consuming surgeries.
A filed proven optimum corrected optical system provides the highest resolution, sharpness& Contrast al all magnifications.
The ergonomic design of the system offers precise & fatigue free operation

Specially designed ENDOPORT type Beam Splitter for Neuro Surgeons.
Beam splitter relay lens with 50:50, 80:20, 90:10 ratio for proper light loss during Surgery.
A filed proven optimum corrected optical system provides the highest resolution, sharpness& Contrast al all magnifications.
The ergonomic design of the system offers precise & fatigue free operation

Type	Galilean
Binaocular	180^o Titable
Objective	Approcromatic F250 standard (F-200 on request)
Eye Piece	12.5 X wide field high eye point
Field of view	Dia 60 mm to Dia 10 mm
Magnification (5 step)	4X, 6X, 9.5X, 15X, 24X
Light Source	Cold light (Halogen) through fiber optic light guide (Xenon optional)
Bulb	24 V / 250W Reflector type
Illumination field	Dia 53 mm
Light Intensity	80,000 for halogen at Std. conditions 1,50,000 for Xenon at Std. conditions
Filter	Built-in heat absorbing filter (Blue, Green optional)
Total Height (Eye point)	Max. 1565 mm - Min. 1165 mm
Fine Focus	Motorised with control in hand / foot switch
Articulated arm adjustment	500 mm
Articulated arm rotation	0^o to 240^o
Head swivel	0^o to 90^o
Power supply	230V 50 Hz single Phase AC (110 V AC-optional)
Power consumption	400 Watts max.
Weight	90 kg
