Ophthalmic Surgical Microscopes

We are Manufacturer, Supplier, Exporter of Ophthalmic Surgical Microscopes and our setup is situated in Sangli, Maharashtra, India.

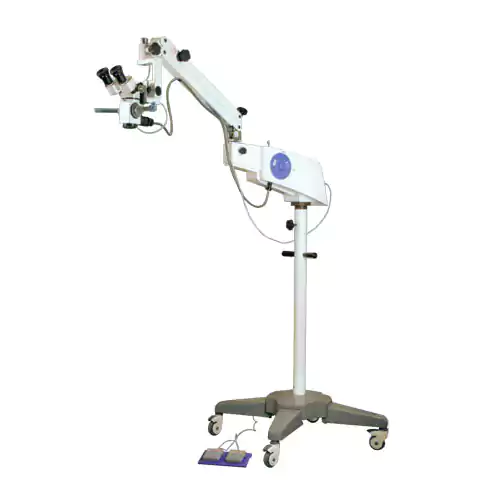

Ophthalmic Surgical Microscopes - Bliss

The opto fine bliss ophthal with its crisp sharp and multi layer coated optics gives surgeon natural colour, out standing depth of focus and higher contrast for maximum details recognition.

The halogen illumination sustem alloes surgeon tosee sharp image even at low light levels.and provides astable red reflex.

The opto fine bliss ophthal with its crisp sharp and multi layer coated optics gives surgeon natural colour, out standing depth of focus and higher contrast for maximum details recognition.

Features

  • High Resolution and wide field optical system having exceptional depth of field
  • Built in axial illumination system with bright light spot
  • Sparp 3 - D images can be observed with high fidelity and depth.
  • 0* coaxial illumination systems for clear red refex.
  • A smooth drum selector offers choice of live difframt imagnification lens settings to suit any observation of microsurgery requirements.
  • With its eazy to move joints and castors the Sm2 floor stand guarantees outstanding mobility and excellent stability at the same time. Reliable brakes ensure that systems remains locked in required positions
  • State of the art balancing arm mechanism extending up ti maximum stroke of 400 mm, counter balance the weights of microscope with mountings and accessories.
  • Single knob operating for emergency swith over to stand by light by source.

Optional Accessories

  • Beam Splitter assembly - easily installable
  • T.V. relay lens System
  • Monocular demonstration tube
  • 1.5 x magnifying attachment for T.V. relay
  • Stand - Table mounted
  • Stand - Wall mounted
  • Motorized fine focusing

Specifications

Type Galilean
Binocular Inclined 45
Objective F-175mm (F-200 mm optional)
Eye Piece 12.5 X wide field high eye point
Total Magnification (5 step) 4.5x, 7.5x, 11.5x, 18.5x, 29.5x
Field of View Dia 49 mm to Dia 8 mm.
Working Distance 175 mm.
Interpupil Adjustment 50 mm to Dia 75 mm.
Diopter Adjustment +6D to -6D
Illumination: Light Source Cold light through, Fiber – Optic light guide
Illumination: Bulb Reflector type halogen lamp 15V & 150W, (24V & 250W optional)
Illumination: Illumination Field 48 mm Dia
Illumination: Light Intensity 100,000 Lux
Illumination: Filter Builtin heat absorbing filter, Blue (Red free), Green (Red free), UV, Black dot retinal protection filter (optional)
Stand: Height (Eye Point) Max – 1390 mm, Min – 990 mm
Stand: Penta Arm- Adjustment 400 mm
Stand: Penta Arm- Rotation 0° to 240°
Stand: Mobility Movable on 4 castor wheels
Supply 230V 50 Hz single Phase AC
Power Consumption 175 Watts max.
Weight 67 kg
Showing 1 to 20 of 20 entries -

Note : Beam Splitter is necessary when either camera attachment of monocular demonstration tube attached.

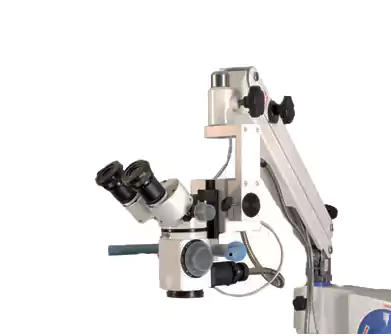

Ophthalmic Surgical Microscopes - Bliss - Zoom

Type Galilean
Binocular Inclined 45
Objective F-175mm (F-200 mm optional)
Eye Piece High eye point
Magnification Continues Zoom 4X to 24X Continues
Field of View Dia 49 mm to Dia 8 mm
Working Distance 175 mm
Interpupil Adjustment 50 mm to Dia 75 mm
Diopter Adjustment +6D to -6D
Illumination: Light Source Cold light through, Fiber – Optic light guide
Illumination: Bulb Reflector type halogen lamp 15V & 150W, (24V & 250W Optional)
Illumination: Illumination Field 48 mm Dia
Illumination: Light Intensity 80,000 LUX max
Illumination: Filter Builtin heat absorbing filter, Blue (Red free), Green (Red free), UV, Black dot retinal protection filter (optional)
Stand: Height (eye point) Max – 1390 mm, Min – 990 mm
Stand: Penta arm- Adjustment 400 mm
Stand: Penta arm- Rotation 0° to 240°
Stand: Mobility Movable on 4 castor wheels
Supply 230V 50 Hz single Phase AC
Power Consumption 175 Watts max
Weight 67 kg
