Skin Meshers ( Skin Graft Expander )

We are Manufacturer, Supplier, Exporter of Skin Meshers, Skin Graft Expander and our setup is situated in Sangli, Maharashtra, India.

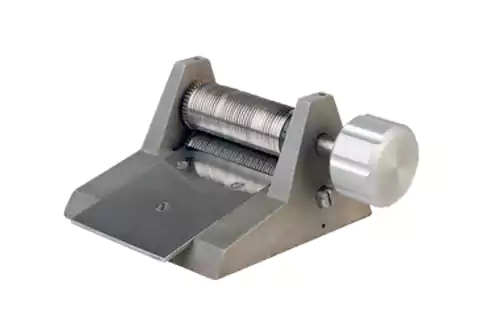

Skin Graft Expanders - SGE

Features

  • The Skin graft is usually put through a speical machine callled skin graft expander, The expander will cut tiny slits in the graft, which allow the graft to stretch for coverting large burn area with less skin.
  • With its unique design it guarantees to transform a skin graft into an efficient graft provider increased area coverage. Its design facilitates easy and accurate meshing of tender skin in the thickness range of 0.2 to 0.8 mm and width upto 120 mm.
  • The aluminium base holds two inclined plates. The front plates supports the skin graft when it is introduced between the two roller. The upper spacers, lower spacers and cutters are manufactured from stainless steel special alloy for corrosion resistance and also heat treated for required hardness and wear resistance.
  • Skin graft expander is available in four expansion rations 1:2, 1:4, 1:6, 1:8 the skin strips of the meshed graft have a uniform width of 1.76 mm he blade design (cutter) eliminates the need for resharpening. Skin graft expander can be autoclaved at 1340 C (2790 F) for 20 minutes or according to hospital procedure.
Skin Meshers, Skin Graft Expander
REQUEST A QUOTE
Model to suit max graft width of (mm) Weight (Kg) Approx Size (mm) Approx
32 1.082 110 x 65
64 1.302 110 x 97
120 1.715 110 x 157

Specifications

Model Expansion Ratio Skin Thickness (mm) Widths Available (mm) Mesh Size (mm) Recommended for
SGE-2 1:2 0.2-0.8 32/64 3.7 Cosmetic, Orthopedic & Plastic Surgery
SGE-4 1:4 0.2-0.8 32/64 7.5 Burn Therapy, Plastic & Reconstructive Surgery. It is a most commonly used model.
SGE-6 1:6 0.2-0.8 32/64/120 11 Used for large surface coverage in severely burnt patients. High expansion ratios are used when the skin graft is of limited supply.
SGE-8 1:8 0.2-0.8 32/64/120 15 Used for large surface coverage in severely burnt patients. High expansion ratios are used when the skin graft is of limited supply.
SGE 2/4/6/8 32/64/120
Model Expansion Ratio Max. width in mm of sking graft for meshing

Use of correct order code ensures supply of the instrument, which meets your entire requirements.

A Skin Graft Expander (SGE) - Having Expansion ratio (1:4)
Allowing max graft width of (64mm) - Is coded AS SGE-4/64
