ENT Surgical Microscopes

We are Manufacturer, Supplier, Exporter of ENT Surgical Microscopes and our setup is situated in Sangli, Maharashtra, India.

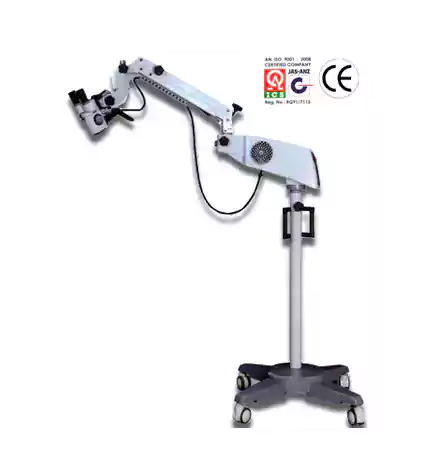

ENT Surgical Microscopes - OPTO Fine Bliss LED

Features

  • Superior optical quality with cutting edge LED illumination
  • High resolution and wide field optical system having exceptional depth of field.
  • Sharp 3D image can be observed with high fidelity & Depth.
  • In Built LED Illumination offer low heat generation low power consumption, LED Illumination also guarantees greater contrast and natural color.

Optional Accessories

  • Beam Splitter with "C' Mount
  • Endoport Type Beam Splitter
ent surgical microscope
REQUEST A QUOTE
Type Galilean
Binocular Straight 1180° Tiltable (Optional)
Objective Oachromatic F -250 Standard (F200 on request)
Eye Piece 12.5 X wide field high eye point
Field of view Please refer the table below.
Magnification Please refer the table below.
Light source Cold light through fiber optic light guide
Bulb LED
Illumination field ø 53mm 80,000 lux max. at standard conditions
Light intensity Built-in heat absorbing filter (Blue, Green Optional)
Total height (Eyepoint) Max. 1565mm min 1165mm
Fine focus Through rack and point range 45mm (motorized optional)
Penta arm adjustment 400mm
Penta arm Rotation 0° to 240°
Head swivel 0° to 90°
Mobility Movable on 4 castor wheels
Power supply 230v 50Hz single phase AC (110V AC optional)
Power consumption 200 watts max
Weight 70Kg

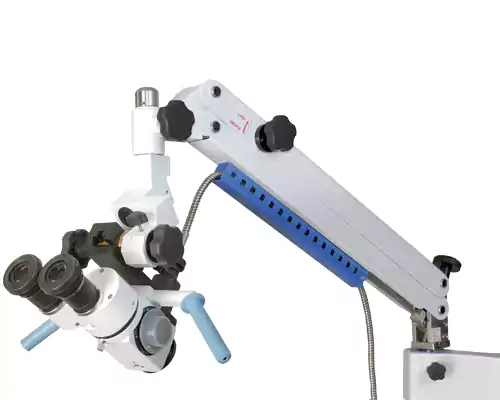

ENT Surgical Microscopes - OPTO Fine Bliss

Opto fine ENT Bliss combines High quality optical system. superior,sharp contrast image and large depth of field hallmarks of opto ENT Bliss.

Features

  • Multilayer coating optics resulting in super high resolution, sharp, Control & optimum rendering of small structures in low lights
  • Dual beam technology offers exceptional clarity in depth, helps for glare free surgery.
  • Computerized assembly for lens provides maximum depth.
  • The ergonomically designed tiltable pre loaded meenanism helps the surgeon to balance microscope head horizontally, vertically. laterally without help of any knob clamping.
  • The ergonomically designed tiltable pre loaded meenanism helps the surgeon to balance microscope head horizontally, vertically. laterally without help of any knob clamping. Single knob operating for emergency switch over stand by light source.

Optional Accessories

  • Specially designed ENDOPORT type Beam Splitter for ENT Surgeons.
  • Beam splitter relay lens with 50:50, 80:20, 90:10 ration for proper light loss during surgery.
  • Demonstration monocular tube.
  • CCD camera
ent surgical microscope
REQUEST A QUOTE
Type Galilean
Binocular Straight / 180° tiltable (optional)
Objective Approcromatic F250 standard (F 200 on request)
Eye Piece 12.5 X wide field high eye point
Field of view Dia 60 mm to Dia 10 mm
Magnification (5 step) 4X, 6X, 9.5X, 15X, 24X
Light Source Cold light through fiber optic light guide
Bulb Reflector type 15 V – 150W
Illumination field Dia 53 mm
Light Intensity 80,000 Lux. max. at standard conditions.
Filter Built-in heat absorbing filter (Blue, Green optional)
Total Height (Eye point) Max. 1565 mm - Min. 1165 mm
Fine Focus Through rack and pinion range 45mm (motorized optional)
Penta arm adjustment 400 mm
Penta arm rotation 0° to 240°
Head swivel 0° to 90°
Mobility Movable on 4 castor wheels
Power supply 230V 50 Hz single Phase AC (110 V AC optional)
Power consumption 200 Watts max.
Weight 70 kg

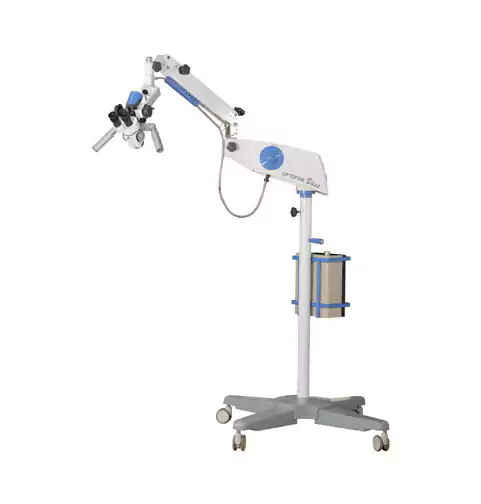

ENT Surgical Microscopes - OPTO Fine Bliss - Zoom

Features

  • Precisely assembled optics with new generation 1:6 ration zoom for grater resolution and contrast at all the magnifications
  • A new generation illumination systems offers a glare free light which enhance apparent depth
  • The ergonomic and balanced moments offers precise & fatigue operation

Optional Accessories

  • Specially designed ENDOPORT type Beam Splitter
  • Beam splitter relay lens with 60:40, 80:20, 90:10 ration for proper light loss during surgery.
  • Demonstration monocular tube
  • CCD camera
  • Binoculars assistant vision system.
ent surgical microscope zoom
REQUEST A QUOTE

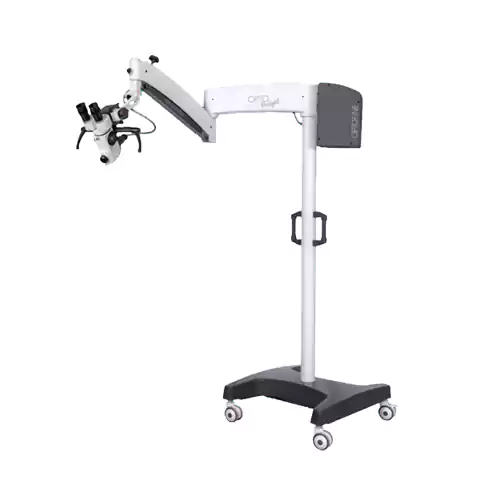

OPTO Delight Microscopes

Delight Microscopes
REQUEST A QUOTE
