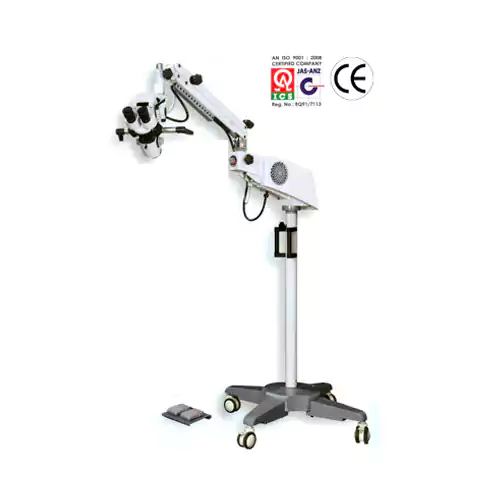

NEURO Surgical Microscopes

We are Manufacturer, Supplier, Exporter of NEURO Surgical Microscopes and our setup is situated in Sangli, Maharashtra, India.

NEURO Surgical Microscopes - Bliss LED

Features

  • Superior optical quality with cutting edge LED illumination.
  • High resolution and wide field optical system having exceptional depth of field.
  • Sharp 3D image can be observed with high fidelity & Depth.
  • In Built LED Illumination offer low heat generation low power consumption LED Illumination also guarantees greater contrast and natural color.

Optional Accessories

  • Specially designed ENDOPORT type Beam Splitter for Neuro Surgeons
  • Beam splitter relay lens with 50:50, 80:20, 90:10 ratio for proper light loss during surgery.
  • Demonstration monocular tube CCD camera.
NEURO Surgical Microscopes
REQUEST A QUOTE
Type Galilean
Binocular 180° tillable
Objective Apochromatic F-250 Standard (F-200 on request)
Eye piece 12.5 X wide field high eye point
Field of view 4> 60mm to 4> 10mm
Magnification (5 Step) 4X, 6X, 9.5X, 15X, 24X.(optional: 1:6 zoom)
Light Source Cold light through fiber optic light guide
Bulb LED (Xenon optional)
Illumination field ø 53mm
Light intensity 90,000 lux Max for LED at Std. conditions
1,50,000 Lux Max for Xenon at Std. conditions
Filter Built-in heat absorbing filter (Blue, Green optional)
Total height (Eyepoint) Max. 1565mm Min. 1165mm
Fine focus Motorized through foot switch
Articulated arm adjustment 500 mm
Articulated arm rotation 0° to 240°
Head swivel 0° to 90°
Power supply 230V 50Hz Single Phase AC (110V AC optional)
Power consumption 400 Watts max.
Weight 90 Kg.
